Wire ties
Goodwill Engineering manufactures wire ties in light duty, medium duty and heavy duty ratings, conforming to AS2699.1:2000 and AS3700:2018.
Wire ties are available in both extra heavy galvanised and 316 stainless steel for R3 and R4 durability. The galvanised wire ties feature extra thick zinc coating, coloured red for easy identification.
Cavity wire ties should be selected according to requirements set out by Australian Standards on masonry structures and masonry ties (AS2699.1:2020 and AS3700:2018).
Duty Classification based on Australian Standards
| Duty Class | Mean Load Capacity (kN) | |
|---|---|---|
| Light Duty (L) | Tension | 0.3 |
| Compression | 0.36 | |
| Medium Duty (M) | Tension | 0.6 |
| Compression | 0.72 | |
| Heavy Duty (H) | Tension | 1.5 |
| Compression | 1.8 | |
We have a wide variety of sizes to accommodate a range of cavity widths.
Product specifications
Determining the appropriate duty classification for brick ties, whether light or medium duty, depends on the specific application of ties on site application. It is essential to consult with a qualified architect, structural engineer, or building surveyor to assess the requirements for wall ties and the relevant lateral bending capacity in the design of cavity walls. While Goodwill Engineering can provide information on brick tie duty and durability classifications, the decision on the required tie duty classification for compliance with building codes and Australian Standards during wall and building integrity design lies in the hands of the professional overseeing the application of brick ties.

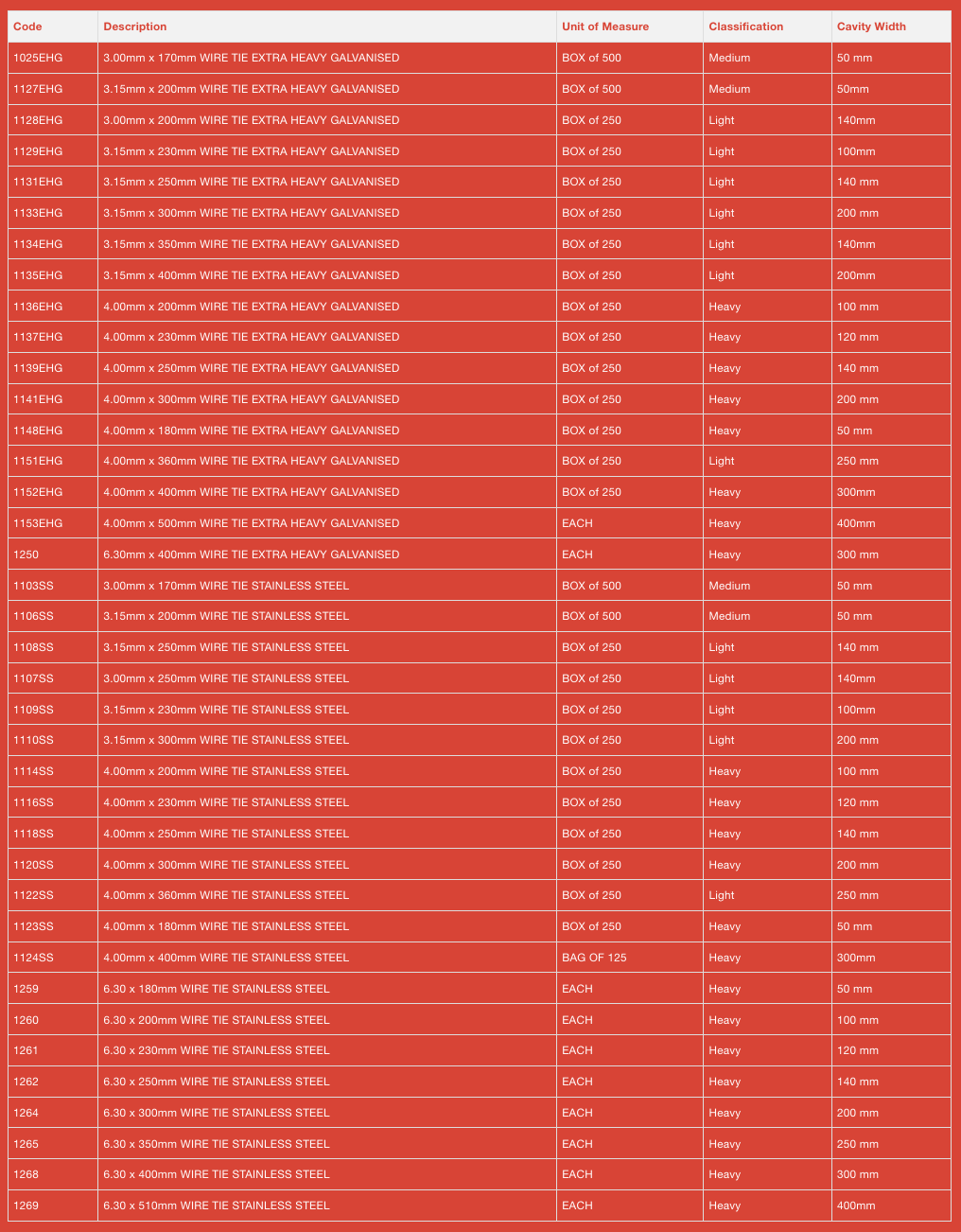

| Code | Description | Unit of Measure | Classification | Cavity Width |
|---|---|---|---|---|
| 1025EHG | 3.00mm x 170mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 500 | Medium | 50 mm |
| 1127EHG | 3.15mm x 200mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 500 | Medium | 50mm |
| 1128EHG | 3.00mm x 200mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 140mm |
| 1129EHG | 3.15mm x 230mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 100mm |
| 1131EHG | 3.15mm x 250mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 140 mm |
| 1133EHG | 3.15mm x 300mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 200 mm |
| 1134EHG | 3.15mm x 350mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 140mm |
| 1135EHG | 3.15mm x 400mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 200mm |
| 1136EHG | 4.00mm x 200mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 100 mm |
| 1137EHG | 4.00mm x 230mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 120 mm |
| 1139EHG | 4.00mm x 250mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 140 mm |
| 1141EHG | 4.00mm x 300mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 200 mm |
| 1148EHG | 4.00mm x 180mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 50 mm |
| 1151EHG | 4.00mm x 360mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Light | 250 mm |
| 1152EHG | 4.00mm x 400mm WIRE TIE EXTRA HEAVY GALVANISED | BOX of 250 | Heavy | 300mm |
| 1153EHG | 4.00mm x 500mm WIRE TIE EXTRA HEAVY GALVANISED | EACH | Heavy | 400mm |
| 1250 | 6.30mm x 400mm WIRE TIE EXTRA HEAVY GALVANISED | EACH | Heavy | 300 mm |
| 1103SS | 3.00mm x 170mm WIRE TIE STAINLESS STEEL | BOX of 500 | Medium | 50 mm |
| 1106SS | 3.15mm x 200mm WIRE TIE STAINLESS STEEL | BOX of 500 | Medium | 50 mm |
| 1108SS | 3.15mm x 250mm WIRE TIE STAINLESS STEEL | BOX of 250 | Light | 140 mm |
| 1107SS | 3.00mm x 250mm WIRE TIE STAINLESS STEEL | BOX of 250 | Light | 140mm |
| 1109SS | 3.15mm x 230mm WIRE TIE STAINLESS STEEL | BOX of 250 | Light | 100mm |
| 1110SS | 3.15mm x 300mm WIRE TIE STAINLESS STEEL | BOX of 250 | Light | 200 mm |
| 1114SS | 4.00mm x 200mm WIRE TIE STAINLESS STEEL | BOX of 250 | Heavy | 100 mm |
| 1116SS | 4.00mm x 230mm WIRE TIE STAINLESS STEEL | BOX of 250 | Heavy | 120 mm |
| 1118SS | 4.00mm x 250mm WIRE TIE STAINLESS STEEL | BOX of 250 | Heavy | 140 mm |
| 1120SS | 4.00mm x 300mm WIRE TIE STAINLESS STEEL | BOX of 250 | Heavy | 200 mm |
| 1122SS | 4.00mm x 360mm WIRE TIE STAINLESS STEEL | BOX of 250 | Light | 250 mm |
| 1123SS | 4.00mm x 180mm WIRE TIE STAINLESS STEEL | BOX of 250 | Heavy | 50 mm |
| 1124SS | 4.00mm x 400mm WIRE TIE STAINLESS STEEL | BAG OF 125 | Heavy | 300mm |
| 1259 | 6.30 x 180mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 50 mm |
| 1260 | 6.30 x 200mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 100 mm |
| 1261 | 6.30 x 230mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 120 mm |
| 1262 | 6.30 x 250mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 140 mm |
| 1264 | 6.30 x 300mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 200 mm |
| 1265 | 6.30 x 350mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 250 mm |
| 1268 | 6.30 x 400mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 300 mm |
| 1269 | 6.30 x 510mm WIRE TIE STAINLESS STEEL | EACH | Heavy | 400mm |
| Property | HG Red Wall Tie Wire - AS /NZS 2699:2000 (3.00, 3.15 & 4.00mm) |
|---|---|
| Carbon (%) | 0.05 Maximum |
| Phosphorus (%) | 0.03 Maximum |
| Manganese (%) | 0.50 Maximum |
| Silicon (%) | 0.12/0.18 |
| Sulphur (%) | 0.03 Maximum |
| Diameter (%) | 2.90 / 3.10 | 3.05 / 3.25 | 3.90 / 4.10 |
| Tensile (MPa) | 350/550 |
| Coating Mass (g/m2) | 470 Minimum |
